About the American Standard 3461.528.020

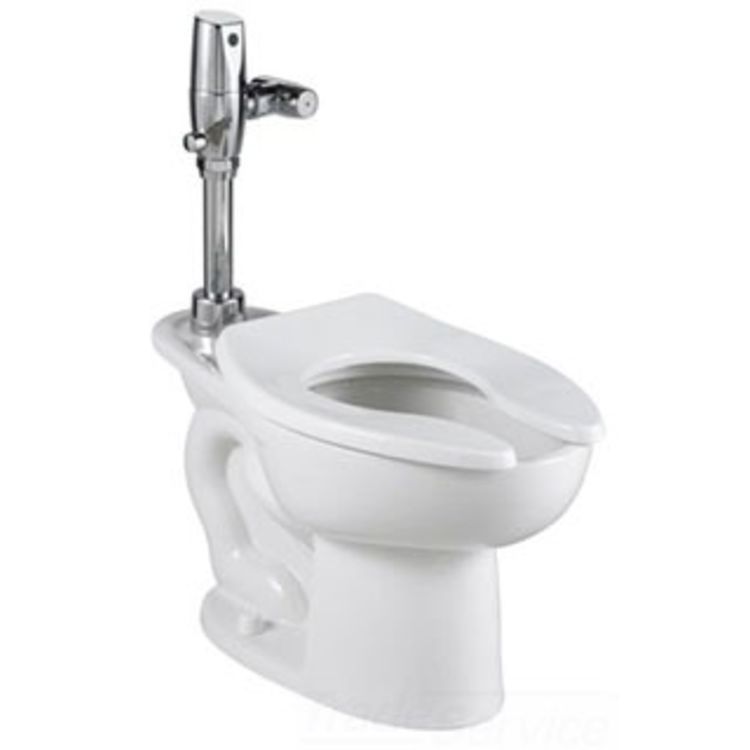

American Standard 3461.528.020 Madera ADA Bowl and Selectronic Flush Valve, White. This elongated floor mount flush-o-meter valve toilet features top and back spuds, an EverClean surface that inhibits the growth of bacteria, mold, and mildew, a fully-glazed 2-1/8" trapway, a 10" or 12" rough-in, a 16-1/2" rim height, a condensation channel, a powerful direct-fed siphon jet action, a 1-1/2" inlet spud, and 2 bolt caps. It's exposed valve is DC powered, comes with it's own batteries, and has an 11-1/2" rough-in.

Product Details

Product: Toilet
Product Collection: Madera
Shape: Elongated
Color: White
Flow Rate: 1.28 Gallons Per Flush
Mount Type: Floor Mount
Height: 16-1/2"
Use: Commercial
Toilet Features: Everclean Surface
ADA: Yes
Other Info: WaterSense
Room: Bathroom
Manufacturer: American Standard
Mpn # 3461.528.020
Shipping Dimensions 1.0" x 1.0" x 1.0"
Weight 1.00 lbs.

Product Features

  • OWL:
  • 10" x 12" water surface area
  • 1-1/2" inlet spud
  • 100% factory flush tested
  • Less toilet seat
  • Electronic flush valve with Selectronic proximity system for Hands Free operation
  • Self-Cleaning Piston operation helps prevent clogging and reduces maintenance
  • Positive seal ensures leak-free performance
  • Fully mechanical Manual Override Button can flush toilet during a power outage
  • Range can be adjusted manually or by remote control
  • High Efficiency, Low Consumption. Operates in the range of 1.1 gpf to 1.6 gpf (4.2 Lpf to 6.0 Lpf)
  • Sensor & electronic controls are fully enclosed and water resistant
  • Automatically flushes after 24 hours of non-use to maintain trap seal
  • 3-second Flush Delay
  • Battery life up to 4 years (approx. 200,000 cycles)
  • Low Battery indicator
  • Battery can be changed without turning off the water
  • Factory-installed 6V lithium battery included
  • Adjustable tailpiece for rough-in flexibility
  • Can be installed left or right hand
  • Model 6065.121.002 Fixture Compliance Certifications - Meets or Exceeds the Following Specifications:
  • Meets definition of HET (High Efficiency Toilet) when used with a high efficiency flush valve (1.28 gpf or 1.6 / 1.1 gpf Dual Flush)
  • ASME A112.19.2-2008 / CSA B45.1-08 for Vitreous China Fixtures Valve Listings:
  • ASSE 1037
  • ANSI/ASME A112.19.2
  • ADA Compliant
  • Permanent EverClean surface inhibits the growth of stain- and odor-causing bacteria, mold, and mildew on the surface
  • 10" or 12" rough-in
  • 16-1/2" rim height for accessible application
  • Condensation channel
  • Powerful direct-fed siphon jet action
  • Fully glazed 2-1/8" trapway
