Rain Bird RBSR24WG1 (PS310001) Pump Start Relay

SKU: 244081

Save 43% · Retail: $124.63

In Stock and Ready to Ship

Ships From Price Qty
Order From Manufacturer
Available to Ship in 2-3 weeks

About the Rainbird RBSR24WG1

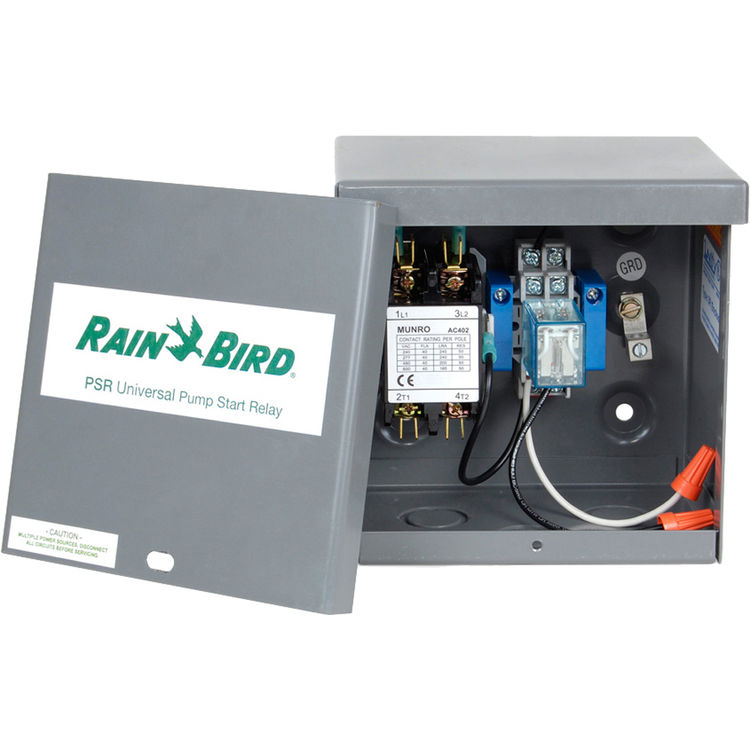

This Rain Bird pump start relay works with a lawn controller's start/stop command to facilitate the electrical path from the breaker box to the pump motor. It provides "pilot duty" operation for all types of electrically driven pump equipment with available coil voltages of 24, 110, and 220V AC. It features a grey, baked-on powder coating for a long-lasting finish in difficult environments, and it's quick connect terminals with wire nuts make it a breeze to install.

Product Details

Product: Timers and Clocks
Style: Relay
Manufacturer: Rainbird
Mpn # RBSR24WG1
Shipping Dimensions 7.8" x 10.0" x 6.8"
Weight 6.40 lbs.

Product Features

  • 40 AMP certified relay
  • Quick connect terminals with wire nuts
  • Grounding provision
  • Compatible with 24 VAC timed lawn controllers
  • Compatible with 110 or 220 VAC 3/4 hp thru 5 hp* single phase pumps
  • Grey "baked-on" powder coating, for long life in difficult environments
  • UL Listed as "Enclosed Industrial Control Panels" and backed by a limited two-year warranty
  • Housed in compact NEMA 3R weather tight enclosures
